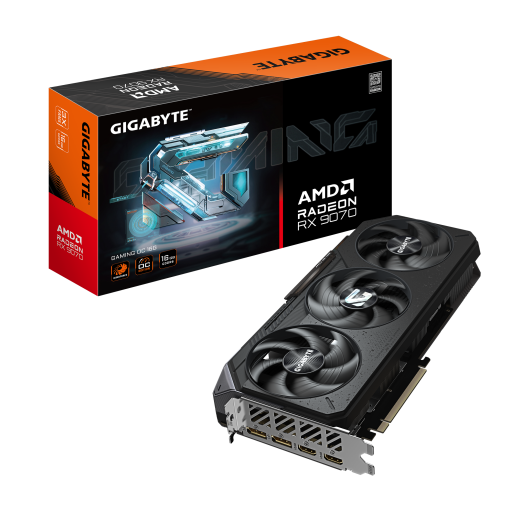

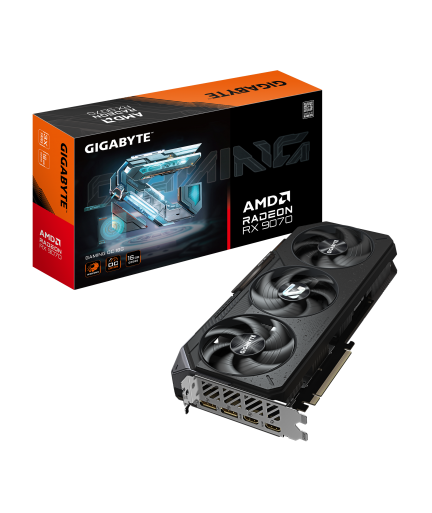

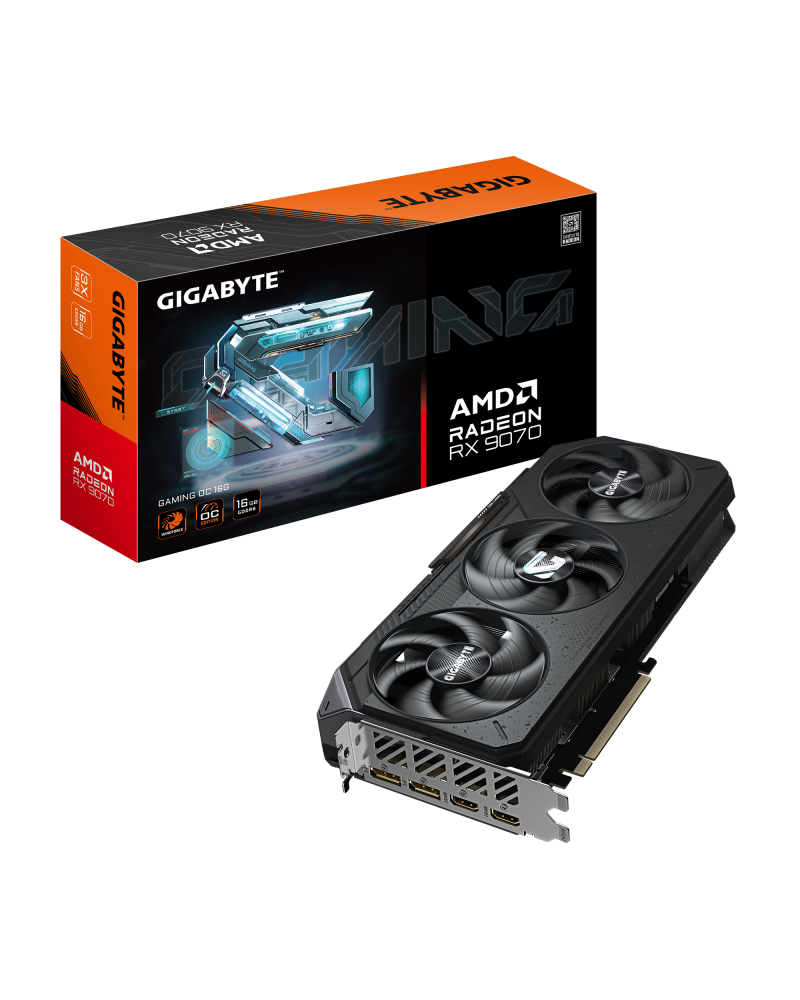

GIGABYTE Radeon RX 9070 Gaming OC 16G, PCIe 5.0, 16GB GDDR6, (GV-R9070GAMING OC-16GD)

Brand                   GIGABYTE

Series                   Gaming

Model                   GV-R9070GAMING OC-16GD

Part Number      GV-R9070GAMING OC-16GD

Interface

Interface PCI Express 5.0              x16

Chipset Manufacturer                   AMD

GPU Series                                       AMD Radeon RX 9000 Series

GPU                                                   Radeon RX 9070

Architecture                                     RDNA 4

Game Clock                                     2210 MHz

Boost Clock                                     2700 MHz

Stream Processors 3584 Stream Processors

Memory

Effective Memory Clock                              20000 MHz (20 Gbps)

Memory Size                                    16GB

Memory Interface                          256-Bit

Memory Type                                  GDDR6

3D API

DirectX DirectX                 12

OpenGL OpenGL                                            4.6

Ports

Multi-Monitor Support                  4

HDMI 2 x HDMI

DisplayPort 2 x DisplayPort

Details

Max Resolution                               7680 x 4320

Cooler                                Triple Fans

Recommended PSU Wattage 750W

Power Connector            2 x 8-Pin

HDCP Ready                      Yes

Form Factor & Dimensions

Max GPU Length 288 mm

Card Dimensions (L x H) 288 x 132 x 50 mm

Slot Width 2.5 Slots
