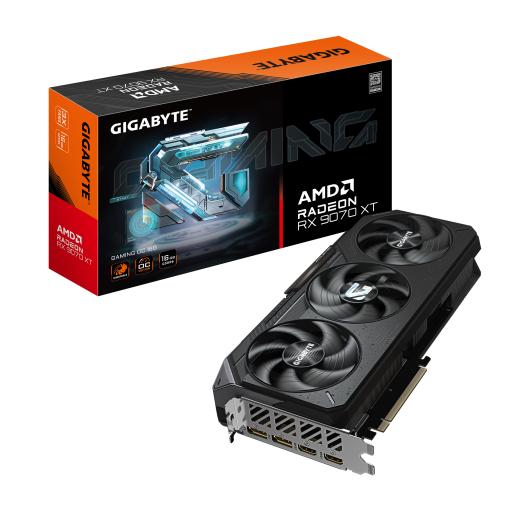

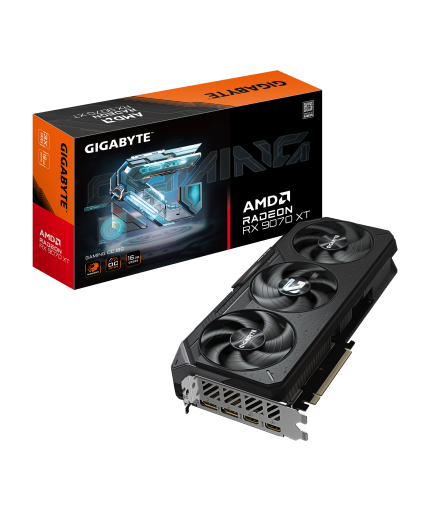

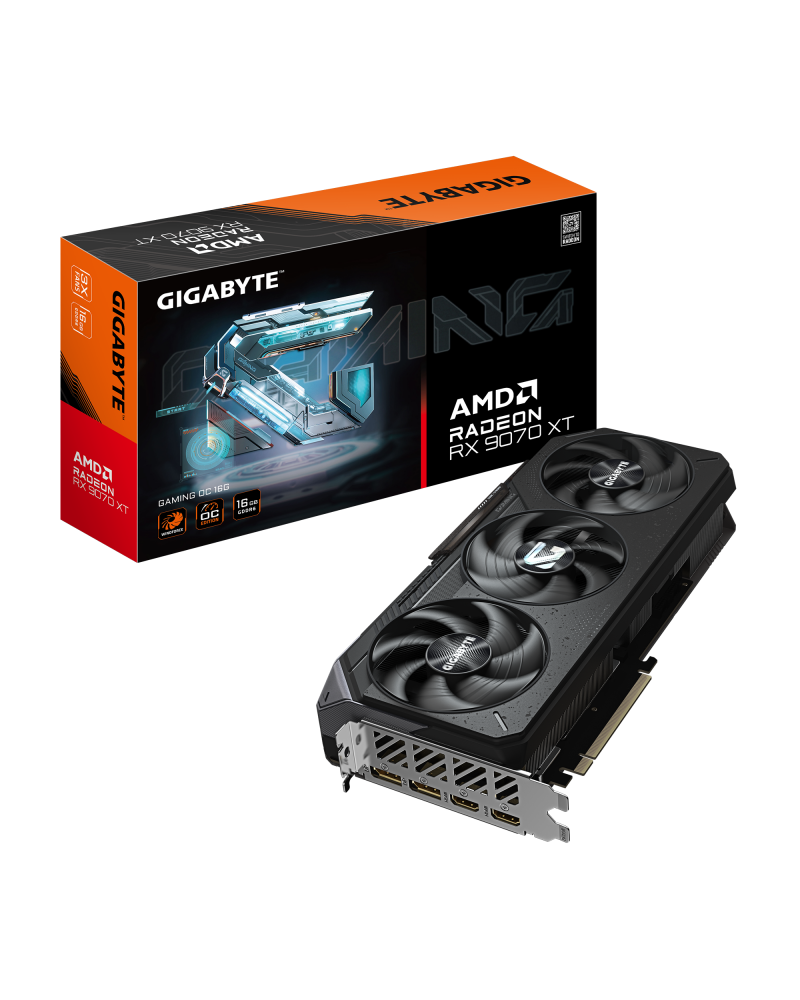

Gigabyte Radeon™ RX 9070 XT GAMING OC 16G (GV-R9070XTGAMING OC-16GD)

Graphics Processing Radeon™ RX 9070 XT

Core Clock Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)

Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)

Stream Processors 4096

Memory Clock 20 Gbps

Memory Size 16GB

Memory Type GDDR6

Memory Bus 256 bit

Card Bus PCI-E 5.0

Digital max resolution  7680×4320

Multi-view 4

Card size L=288 W=132 H=56 mm

PCB Form ATX

DirectX DirectX 12 API

OpenGL 4.6

Recommended PSU 850W

Power Connectors 8 pin*3

Output DisplayPort 2.1a *2

HDMI 2.1b *2

Accessories Quick guide
