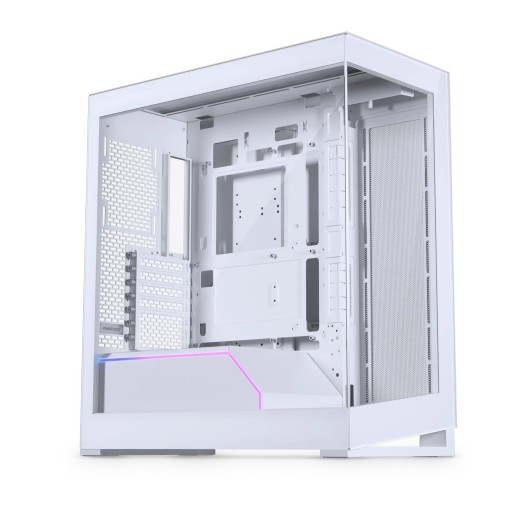

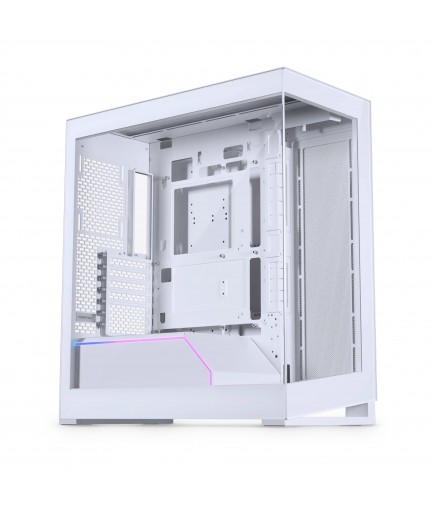

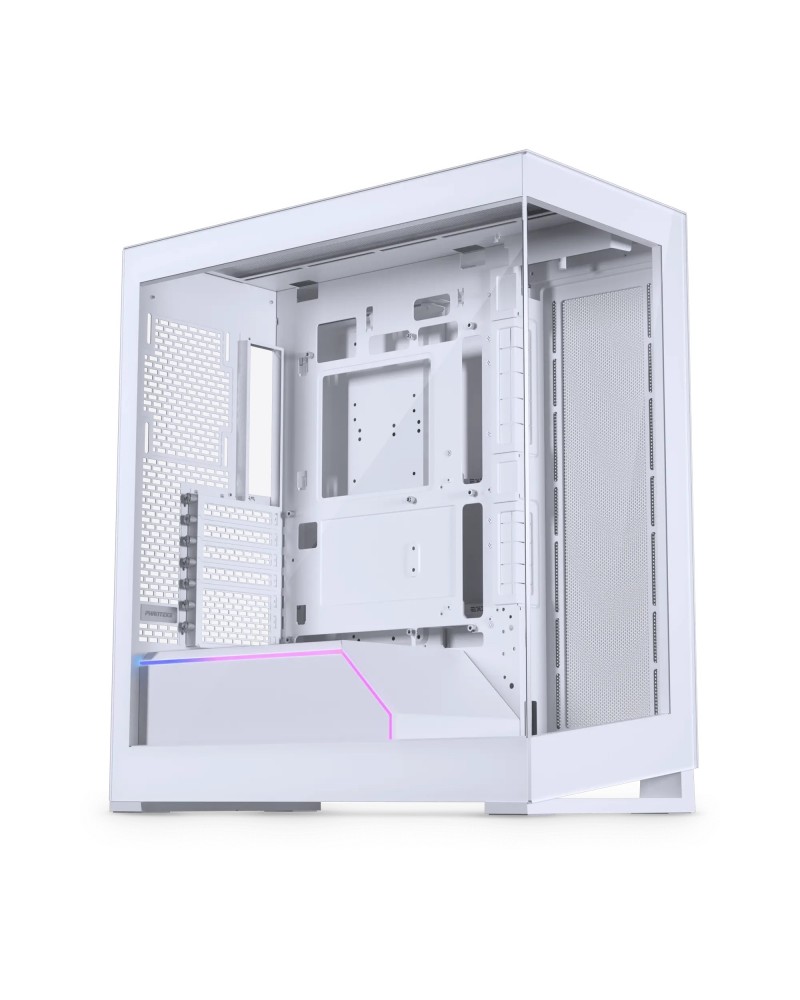

Phanteks PH-NV523TG_DMW02 NV5 MK2 Mid Tower Tempered Glass Matte White Retail

Model No. PH-NV523TG_DMW02

Form Factor Mid-Tower

Mainboard Support E-ATX ATX Micro-ATX Mini-ITX

Up to 280mm without GPU Support Bracket

Materials Steel chassis Tempered glass

Side Window Yes

PCI Slots 7

Vertical GPU Support 3-slots

Riser Cable sold separately

Internal 2.5 Bay 4

Internal 3.5 Bay 3

Front I/O

1x USB-C 3.2 Gen 2

2x USB 3.0

Microphone Headphone

D-RGB Mode Button

D-RGB Color Button

Power Button

Fans 120 / 140

Total Fans

8x / -

Top

3x / -

Front

- / -

Side

3x / -

Rear

1x / -

Bottom

1x / -

Radiators 120 / 140

Top

Max. 360 / -

Front

- / -

Side

Max. 360 / -

Rear

120 / -

Bottom

- / -

Clearance

CPU Cooler

Height

180 mm / 7.08 in

GPU

Length

440 mm / 17.32 in

GPU

Height

170 mm / 6.69 in

Power Supply

Length

230 mm / 9.05 in

Top Radiator

Length x Width

134 x 430 x 62 mm / 5.27 x 16.92 x 2.44 in

Front Radiator

Length x Width

- / -

Side Radiator

Length x Width

130 x 420 x 62 mm / 5.11 x 16.53 x 2.44 in

Rear Radiator

Length x Width

132 x 170 mm / 5.19 x 6.69 in

Extra

Scope of Delivery

1x NV5 chassis

Accessory Box

6x Zip ties

1x GPU support bracket

Screws

22x Mainboard SSD screws

4x Power supply screws

4x Thumb screws

12x Case screws

1x Motherboard stand-off

1x Stand-off removal tool

Item Dimension (L"xW"xH")25 x 13 x 23

Weight54 lbs
