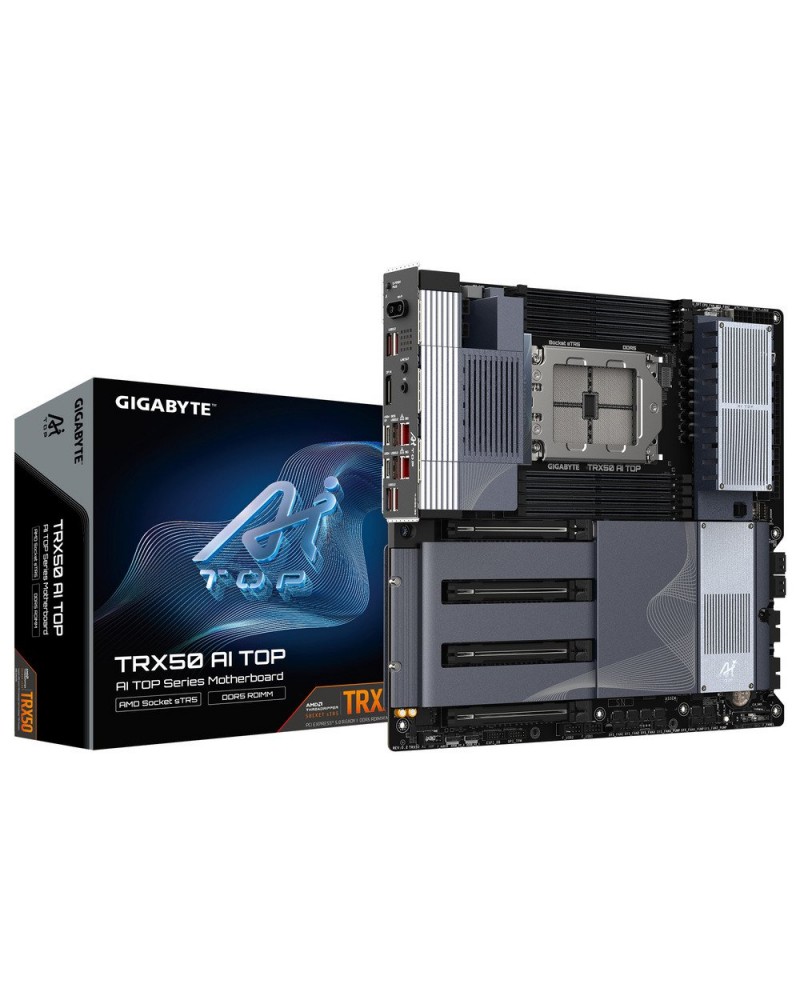

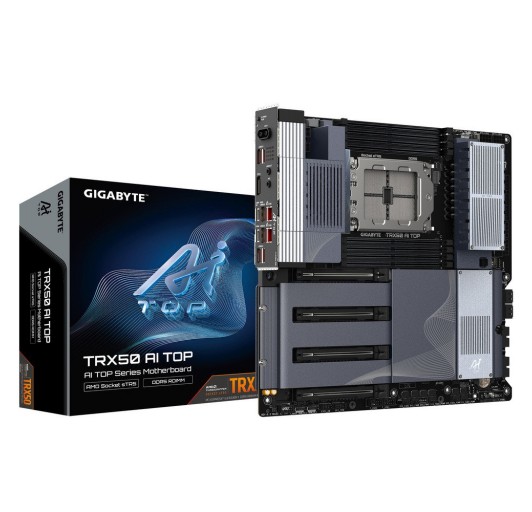

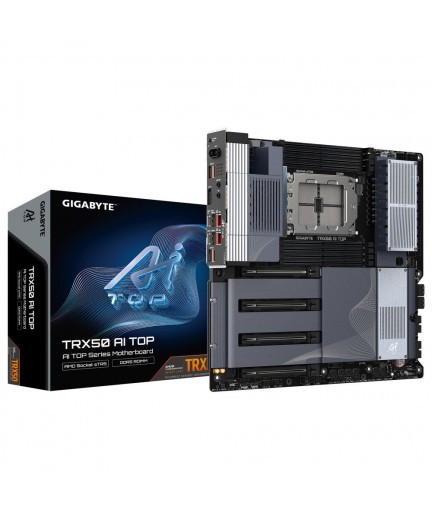

GIGABYTE TRX50 AI TOP-2B AMD Socket sTR5 support AMD Ryzen Threadripper PRO 7000 processors/AMD Ryzen Threadripper 7000 Series processors AMD TRX50 DDR5 SATA3 M.2 EATX
GIGABYTE TRX50 AI TOP-2B AMD Socket sTR5 support AMD Ryzen Threadripper PRO 7000 processors/AMD Ryzen Threadripper 7000 Series processors AMD TRX50 DDR5 SATA3 M.2 EATX
Marca: GIGABYTE
Referencia: TRX50 AI TOP-2B
Disponibilidad: Disponible USA entrega 7/14 dias

Precio Efectivo y tranferencia

$1,159,990

Precio Tarjeta

$1,241,093

Consulta por Este producto por WhatsApp aquí

Cantidad

  • CPU: AMD Socket sTR5, support for: AMD Ryzen Threadripper PRO 7000 processors/AMD Ryzen Threadripper 7000 Series processors
  • Chipset: AMD TRX50
  • Memory
    • Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS)
    • 8 x DDR5 DIMM sockets supporting up to 2 TB of system memory
    • AMD Ryzen Threadripper PRO 7000 Processors support 8-Channel memory architecture
    • AMD Ryzen Threadripper 7000 Processors support Quad Channel memory architecture

    • Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

  • Audio
    • Realtek ALC4080 CODEC (rear panel audio)
    • Support for DTS: X Ultra
    • High Definition Audio
    • 2-channel
    • Realtek ALC897 CODEC (front panel audio)
  • LAN: 2 x Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)
  • Wireless Communication module
    • Qualcomm Wi-Fi 7 QCNCM865
    • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    • BLUETOOTH 5.3
    • Support for 11be 320MHz wireless standard
  • Expansion Slots
    • 3 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU:
    • AMD Ryzen Threadripper PRO 7000 Processors support PCIe 5.0 x16 mode
    • AMD Ryzen Threadripper 7000 Processors support PCIe 5.0 x16 mode
    • 1 x PCI Express x16 slot (PCIEX16_4), integrated in the CPU:
    • AMD Ryzen Threadripper PRO 7000 Processors support PCIe 5.0 x16 mode
    • AMD Ryzen Threadripper 7000 Processors support PCIe 4.0 x16 mode
  • Storage Interface
    • 3 x M.2 connectors (M2C_CPU/M2B_CPU/M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    • AMD Ryzen Threadripper PRO 7000 processors support PCIe 5.0 x4/x2 SSD
    • AMD Ryzen Threadripper 7000 Processors support PCIe 4.0 x4/x2 SSD
    • 1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    • AMD Ryzen Threadripper PRO 7000 processors support PCIe 5.0 x4/x2 SSD
    • 4 x SATA 6Gb/s connectors
    • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    • RAID 0, RAID 1, support for SATA storage devices
  • USB
    • CPU: 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    • Chipset+Intel USB4 controller: 2 x USB4 USB Type-C ports on the back panel
    • Chipset:
    • 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
    • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    • Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports available through the internal USB headers
    • Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    • 1 x 24-pin ATX main power connector
    • 2 x 8-pin ATX 12V power connectors
    • 4 x PCIe power connectors
    • 1 x CPU fan header
    • 1 x CPU fan/water cooling pump header
    • 2 x system fan headers
    • 4 x system fan/water cooling pump headers
    • 3 x addressable RGB Gen2 LED strip headers
    • 1 x RGB LED strip header
    • 4 x M.2 Socket 3 connectors
    • 4 x SATA 6Gb/s connectors
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
    • 2 x USB 3.2 Gen 1 headers
    • 2 x USB 2.0/1.1 headers
    • 1 x noise detection header
    • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
    • 1 x power button
    • 1 x Clear CMOS button
    • 1 x reset button
    • 1 x reset jumper
    • 2 x temperature sensor headers
    • 1 x Clear CMOS jumper
  • Back Panel Connectors
    • 1 x Q-Flash Plus button
    • 2 x SMA antenna connectors (2T2R)
    • 1 x DisplayPort In port
    • 1 x USB4 USB Type-C port (DisplayPort)
    • 1 x USB4 USB Type-C port
    • 6 x USB 3.2 Gen 2 Type-A ports (red)
    • 2 x RJ-45 port
    • 2 x audio jacks
  • I/O Controller: iTE I/O Controller Chip
  • H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Water cooling flow rate detection
    • Fan fail warning
    • Fan speed control
    • Noise detection
  • BIOS
    • 1 x 256 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    • Support for GIGABYTE Control Center (GCC)
    • Support for Q-Flash
    • Support for Q-Flash Plus
    • Support for Smart Backup
  • Bundled Software
    • Norton Internet Security (OEM version)
    • LAN bandwidth management software
  • Operating System
    • Support for Windows 11 64-bit
    • Support for Ubuntu 24.04 LTS
  • Form Factor: E-ATX Form Factor; 30.5cm x 33.0cm
