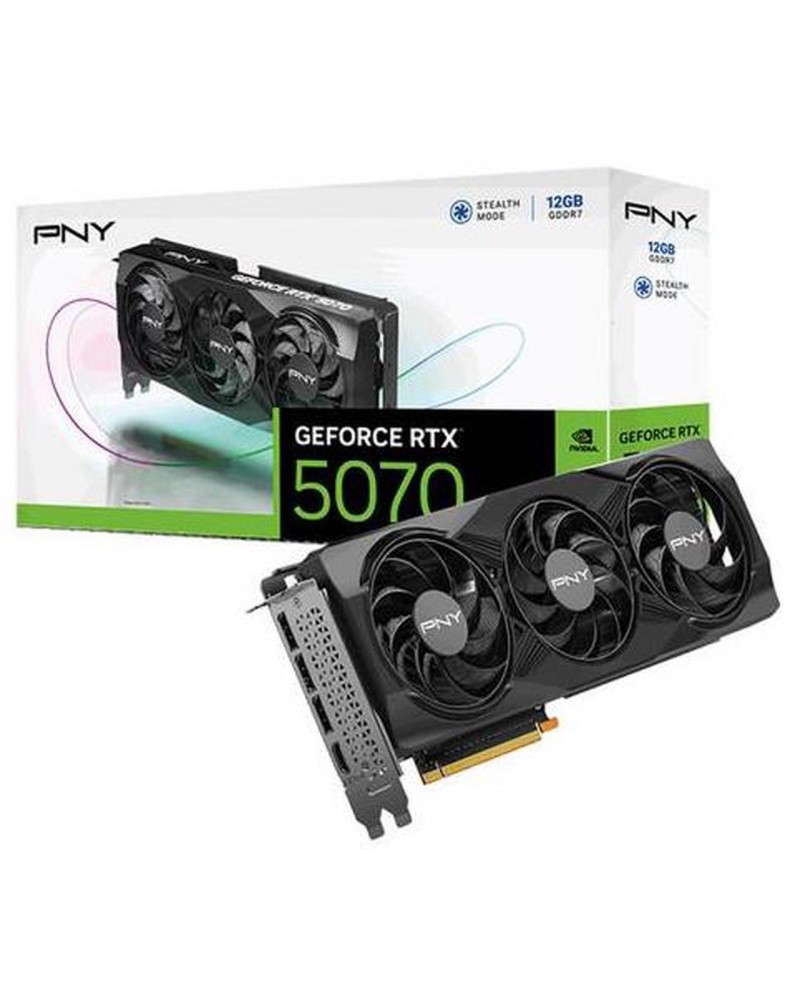

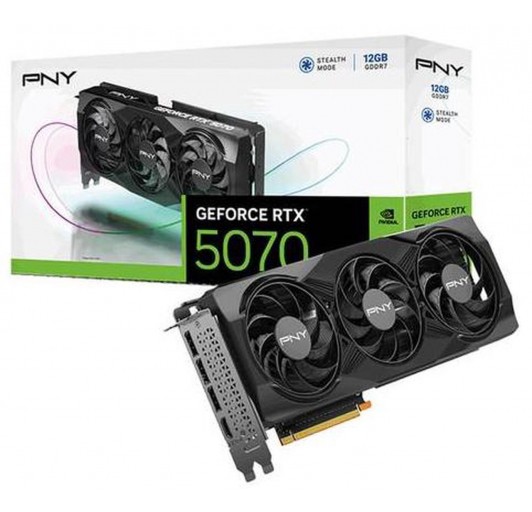

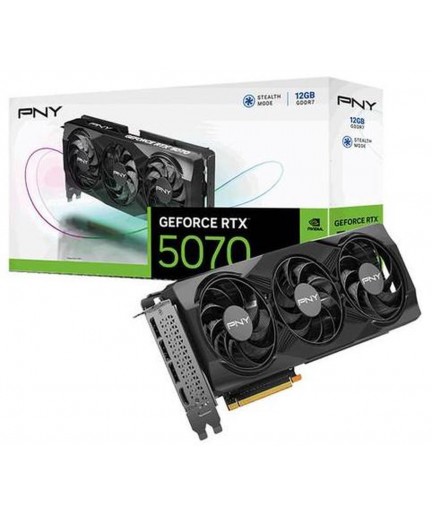

PNY NVIDIA GeForce RTX 5070 Triple Fan - 12 GB GDDR7 - PCIe 5.0 x16 - 250 W (VCG507012TFXPB1)

VCG507012TFXPB1

GPU Model NVIDIA GeForce RTX 5070

Stream Processors 6144 CUDA Cores

Dedicated AI Cores Yes, 988 TOPS

Interface PCI Express 5.0 x16

Video RAM 12 GB GDDR7

Video Output 3x DisplayPort 2.1b

1x HDMI 2.1b

Power Connection 1x 16-Pin PCI Connector

Recommended System Power 250 W

GPU Width 2.4-Slot

GPU

GPU Model NVIDIA GeForce RTX 5070

Stream Processors 6144 CUDA Cores

Clock Speed Base Mode: 2.16 GHz

Dedicated AI Cores Yes, 988 TOPS

Interface

PCI Express 5.0 x16

Supported APIs OpenGL: 4.6

Memory

Video RAM 12 GB GDDR7

Memory Interface Width 192-Bit

Memory Bandwidth 672 GB/s

Display Support

Video Output 3x DisplayPort 2.1b

1x HDMI 2.1b

Power Requirements

Power Connection 1x 16-Pin PCI Connector

Recommended System Power 250 W

Expansion Slot Compatibility Full Height

Height 4.73" / 120.14 mm

Length 11.8" / 299.7 mm

GPU Width 2.4-Slot

OS Compatibility Windows

General

Cooler Type

Open Fansink with Three Fans
