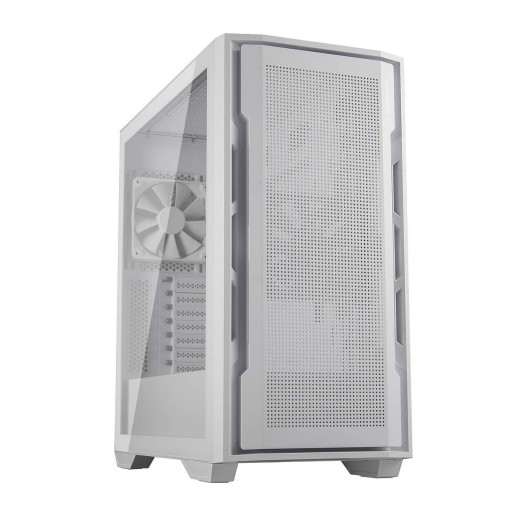

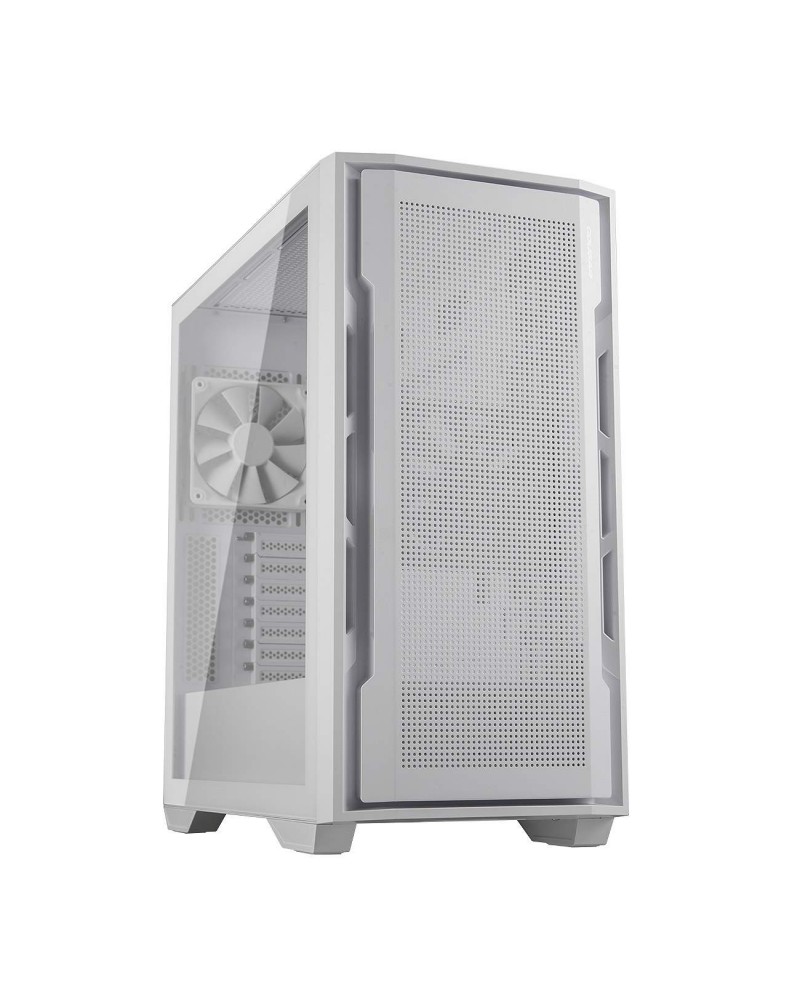

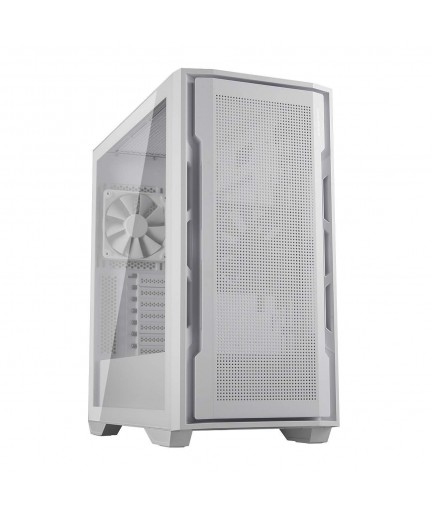

Cougar Uniface White Atx

Product Name Uniface / Uniface (White)

Case Form Factor Mid Tower

Motherboard Type Mini ITX / Micro ATX / ATX / CEB / E-ATX

Dimensions (WxHxD) 230 x 493 x 475 (mm)

9.1 x 19.4 x 18.7 (in)

I/O Panel Type C Gen 2 x 1, USB 3.0 x 2, 4 Pole Headset Audio Jack x 1, Reset Button

3.5" Drive Bay 2

2.5" Drive Bay 2+1 (converted from 3.5" drive bays)

Expansion Slots 7 (horizontal slots can be converted into vertical slots)

Vertical GPU Support Yes

Cooling Fan Support Front 120mm x 3 / 140mm x 3

Top 120mm x 3 / 140mm x 2

M/B side 120mm x 2

Rear 120mm x 1 / 140mm x 1

Pre-installed Fans Front 120mm non-RGB fan x 1

Rear 120mm non-RGB fan x 1

Speed 120mm fan: 1200 ± 10% RPM

Connector 3 Pin

Maximun Number of Fans 9

Water Cooling Support Front 420mm / 360mm / 280mm / 240mm / 140mm / 120mm

Top 360mm / 280mm / 240mm / 140mm / 120mm

M/B side 240mm / 120mm

Rear 140mm / 120mm

Transparent Left Panel Yes

Max. Graphics Card Length 400 (mm) / 15.7 (in)

Max. CPU Cooler Height 180 (mm) / 7.1 (in)

Max. PSU Length 210 (mm) / 8.3 (in)
