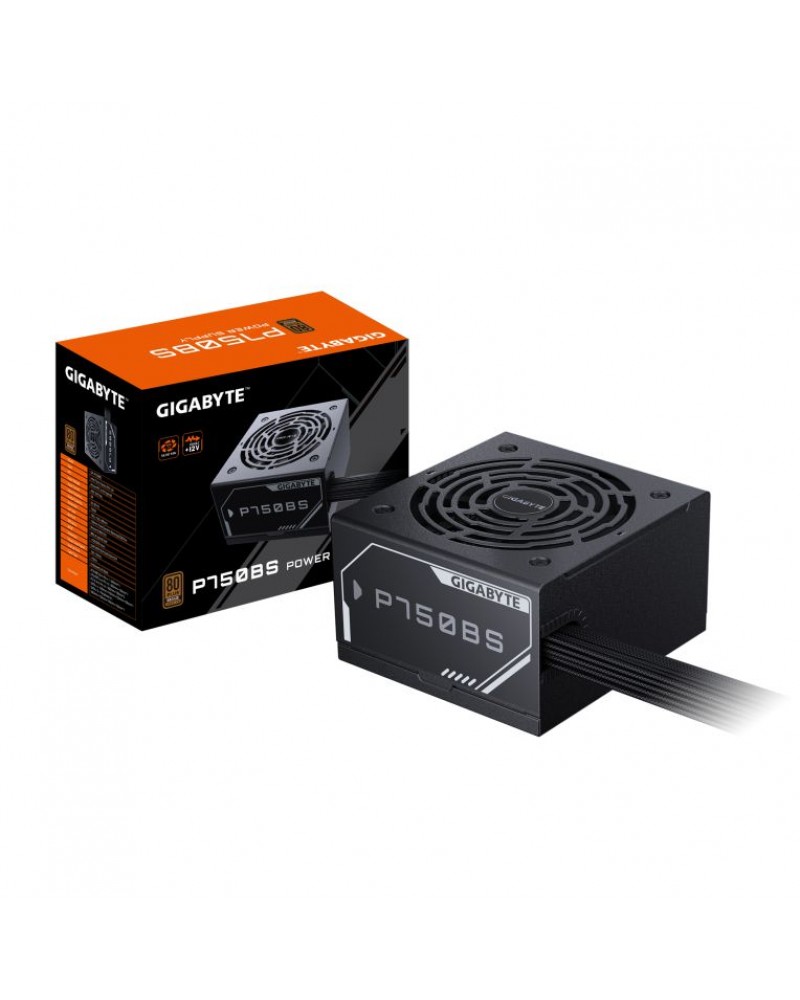

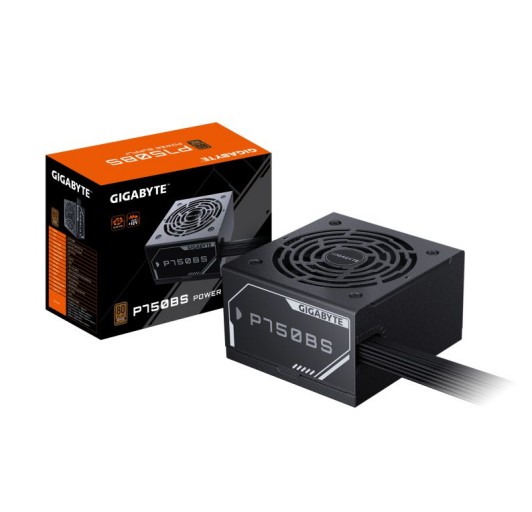

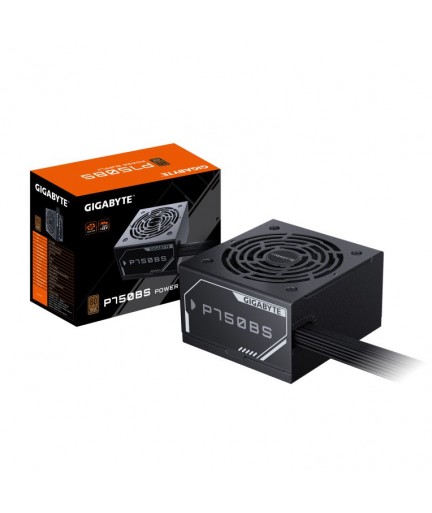

Gigabyte 750 W GP-P750BS 80 plus Bronze

Model GP-P750BS

Type Intel Form Factor ATX 12V

PFC Active PFC (>0.9 typical)

Input Voltage 200-240 Vac

Input Current 6 A

Input Frequency 60-50 Hz

Output Capacity 750W

Dimension 150 x 140 x 86 mm

Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan

80 PLUS Bronze (230V EU)

Efficiency 88% at typical load

MTBF >100,000 hours

Protection OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal100-150ms

Hold Up Time >16ms

Cable Type

Embossed, All black

Connectors

ATX/MB 20+4 Pin x 1 : 600mm*1

CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1

PCI-E 6+2 Pin x 4 : 500mm+150mm*2

SATA x 4 : 500mm+150mm+150mm+150mm*1

SATA x 3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1
