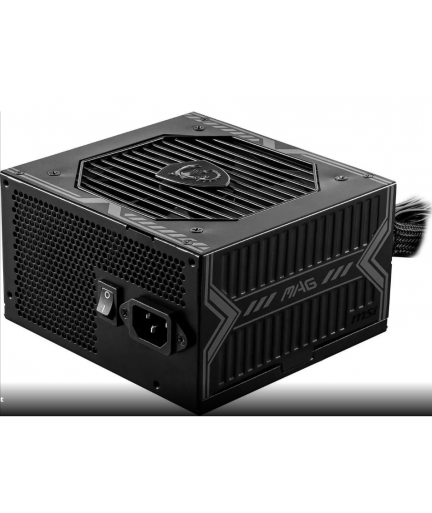

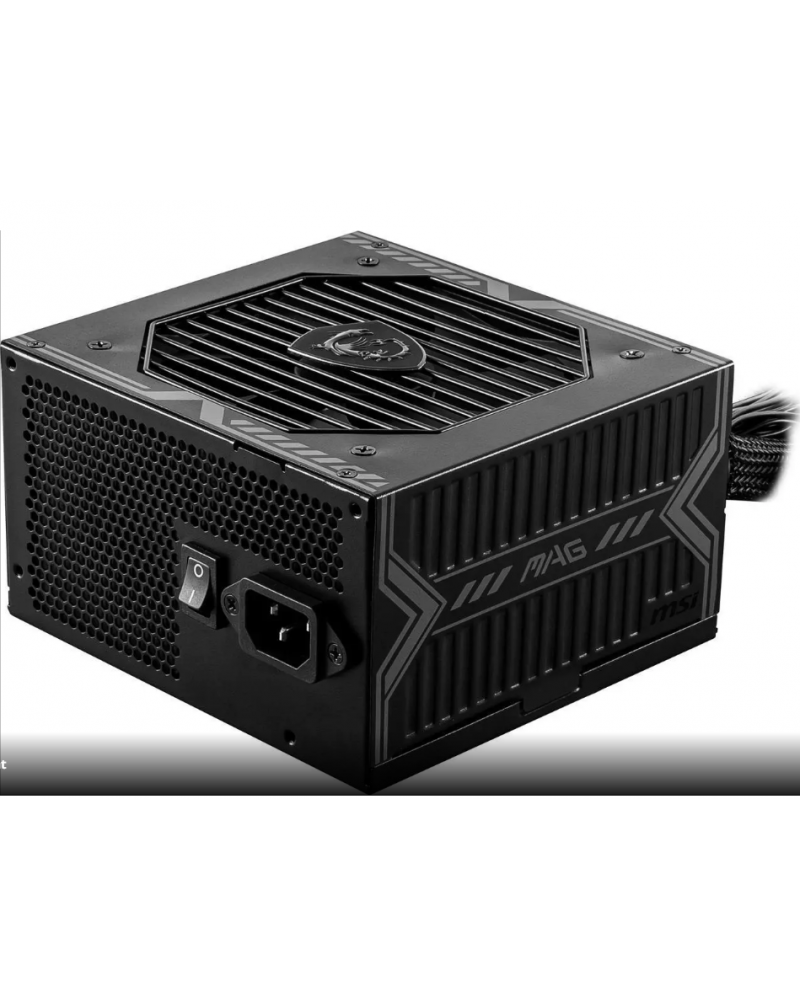

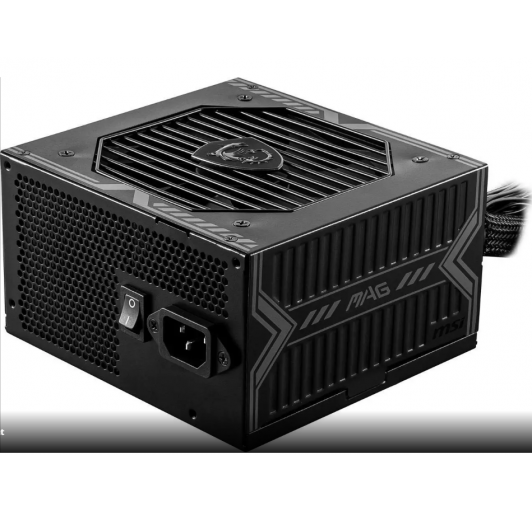

MSI MAG A650BN 650W ATX 80 PLUS BRONZE Certified Active PFC Power Supply

Brand MSI

Model MAG A650BN

Color Black

Type Intel ATX 12V

Maximum Power 650 W

Fans 1 x 120 mm

PFC Active

Max PSU Length 140 mm

Energy-Efficient 80 PLUS BRONZE Certified

Protection OCP / OVP / OPP / OTP / SCP

Input Voltage 100 - 240 V

Input Frequency Range 50/60 Hz

Input Current 115Vac/10.0A max.

230Vac/5.0A max.

Output +3.3V@20A, +5V@20A, +12V@54A, -12V@0.3A, +5VSB@2.5A

Connectors 1 x 24 pin (20+4) ATX

1 x 8 pin (4+4) EPS (CPU)

2 x 8 pin (6+2) PCIe

5 x SATA

2 x Molex

1 x FDD

Dimension & Weight

Dimensions 3.39" x 5.91" x 5.51"

Weight 4.37 lbs
