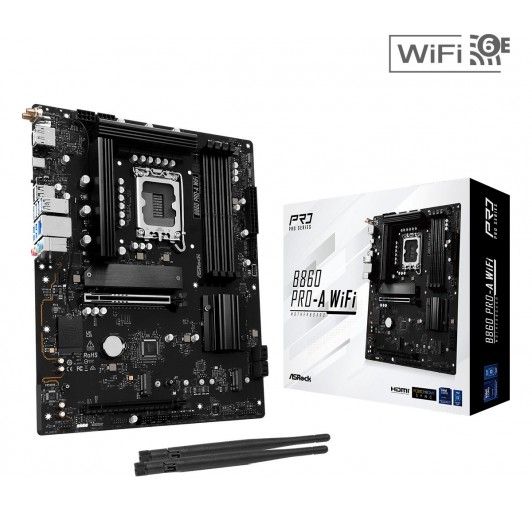

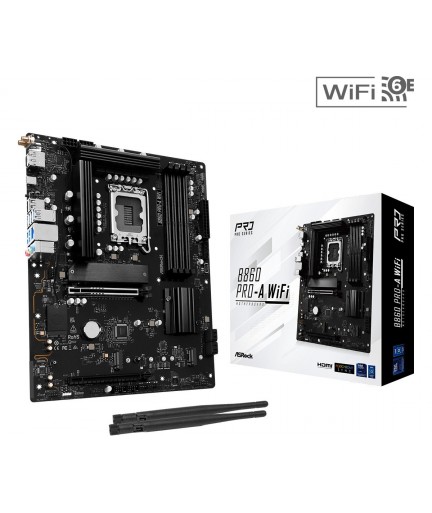

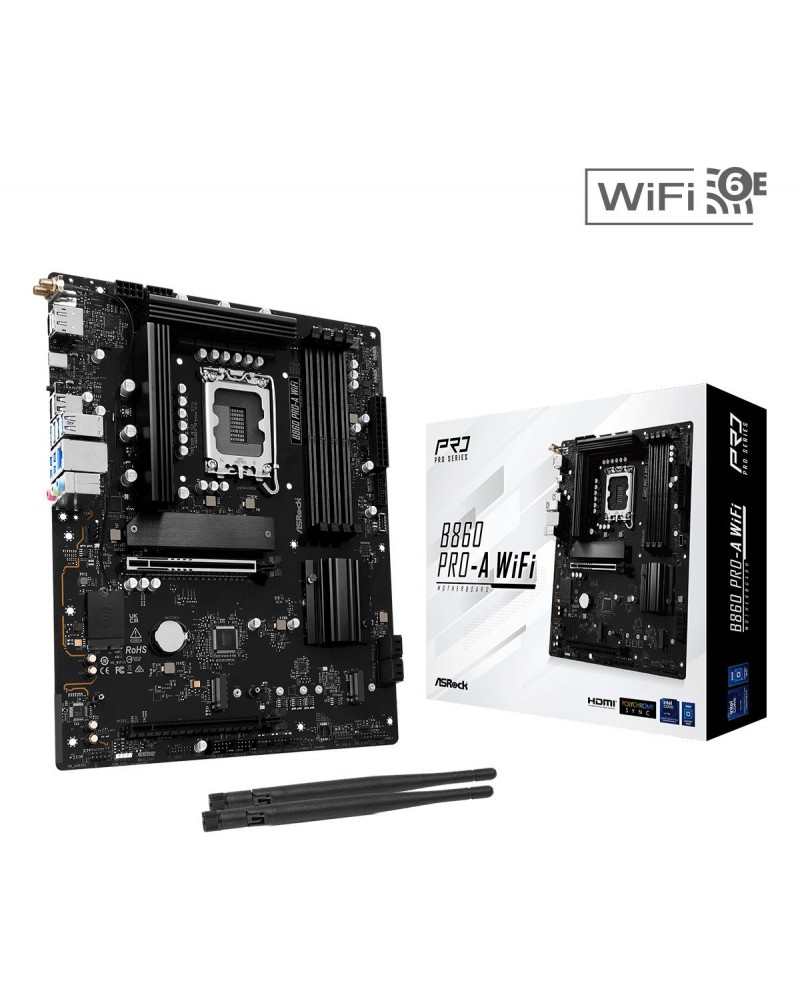

ASRock B860 Pro-A WiFi LGA 1851 Intel B860 SATA 6Gb/s DDR5 Intel Core Ultra ATX
ASRock B860 Pro-A WiFi LGA 1851 Intel B860 SATA 6Gb/s DDR5 Intel Core Ultra ATX
Marca: Asrock
Referencia: B860 PRO-A WIFI
Disponibilidad: Disponible USA entrega 7/14 dias

Precio Efectivo y tranferencia

$195,900

Precio Tarjeta

$210,741

Consulta por Este producto por WhatsApp aquí

Cantidad

  • Unique Feature
    • Superb Productivity
    • PCIe Gen5 (Graphics, M.2)
    • Dual Channel DDR5
    • Rock-Solid Durability
    • 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
    • Ultrafast Connectivity
    • 2.5G LAN, 802.11axe Wi-Fi 6E Module
    • EZ Update
    • BIOS Flashback Button
    • ASRock Auto Driver Installer
    • EZ Troubleshooter
    • ASRock Post Status Checker
  • CPU
    • Supports Intel Core Ultra Processors (Series 2) (LGA1851)
    • Supports Intel Hybrid Technology
    • Supports Intel Turbo Boost Max 3.0 Technology
    • Supports Intel Thermal Velocity Boost (TVB)
    • Supports Intel Adaptive Boost Technology (ABT)
    • Integrated NPU for dedicated AI acceleration
  • Chipset: Intel B860
  • Memory
    • Dual Channel DDR5 Memory Technology
    • 4 x DDR5 DIMM Slots
    • Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)
    • Supports Clocked Unbuffered DIMM (CUDIMM)
    • Max. capacity of system memory: 256GB
    • Supports Intel Extreme Memory Profile (XMP) 3.0x

    • 4400 MHz Natively.

  • BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    • Intel Xe LPG Graphics Architecture
    • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • LAN
    • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    • Dragon RTL8125BG
    • Supports Dragon 2.5G LAN Software
    • Smart Auto Adjust Bandwidth Control
    • Visual User Friendly UI
    • Visual Network Usage Statistics
    • Optimized Default Setting for Game, Browser, and Streaming Modes
    • User Customized Priority Control
  • Wireless LAN
    • 802.11axe Wi-Fi 6E Module
    • Supports IEEE 802.11a/b/g/n/ac/ax/axe
    • Supports Dual-Band 2x2 with extended 6GHz band support
    • 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    • Supports Bluetooth 5.3
    • Supports MU-MIMO
  • Slots
    • CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
    • Chipset:
    • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
    • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
  • Storage
    • CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
    • Chipset:
    • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
    • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
    • 4 x SATA3 6.0 Gb/s Connectors

    • Supports NVMe SSD as boot disks

  • RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    • CPU:
    • 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:
    • 1 x USB 3.2 Gen1 Type-C (Front)
    • 8 x USB 3.2 Gen1 (6 Rear, 2 Front)
    • 6 x USB 2.0 (2 Rear, 4 Front)
  • Connector
    • 1 x SPI TPM Header
    • 1 x Power LED and Speaker Header
    • 1 x RGB LED Header
    • 3 x Addressable LED Headers
    • 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
    • 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    • 1 x 24 pin ATX Power Connector
    • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    • 1 x Front Panel Audio Connector
    • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    • 1 x Front Panel Type C USB 3.2 Gen1 Header
  • Rear Panel I/O
    • 2 x Antenna Ports
    • 1 x HDMI Port
    • 1 x DisplayPort 1.4
    • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
    • 6 x USB 3.2 Gen1 Ports
    • 2 x USB 2.0 Ports
    • 1 x RJ-45 LAN Port
    • 1 x BIOS Flashback Button
    • HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    • Software:
    • ASRock Motherboard Utility (A-Tuning)
    • ASRock Dragon 2.5G LAN Software
    • ASRock Polychrome SYNC
    • UEFI:
    • ASRock EZ Mode
    • ASRock Full HD UEFI
    • ASRock My Favorites in UEFI
    • ASRock Auto Driver Installer
    • ASRock Instant Flash
  • Accessories
    • 1 x I/O Shield
    • 2 x SATA Data Cables
    • 2 x ASRock WiFi 2.4/5/6 GHz Antennas
  • Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  • OS: Microsoft Windows 11 64-bit
  • Certifications
    • FCC, CE
    • ErP/EuP ready (ErP/EuP ready power supply is required)
