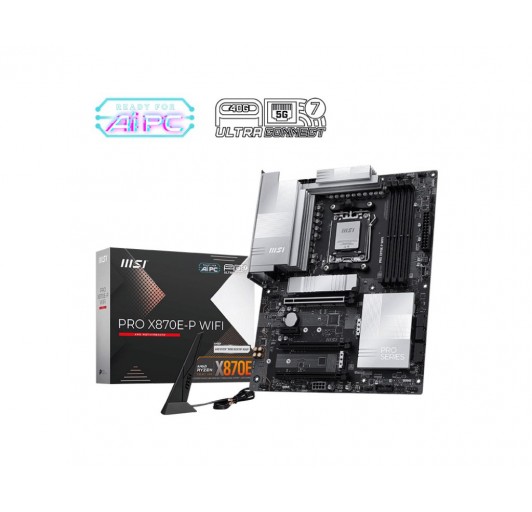

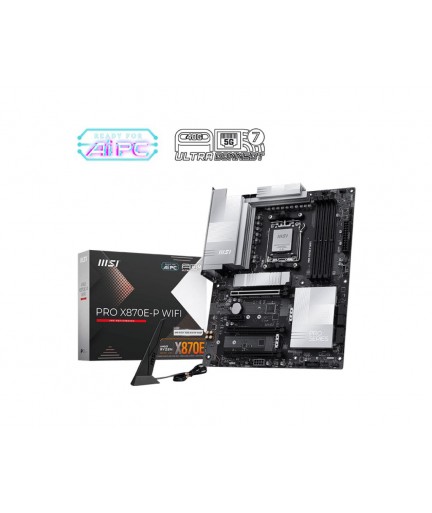

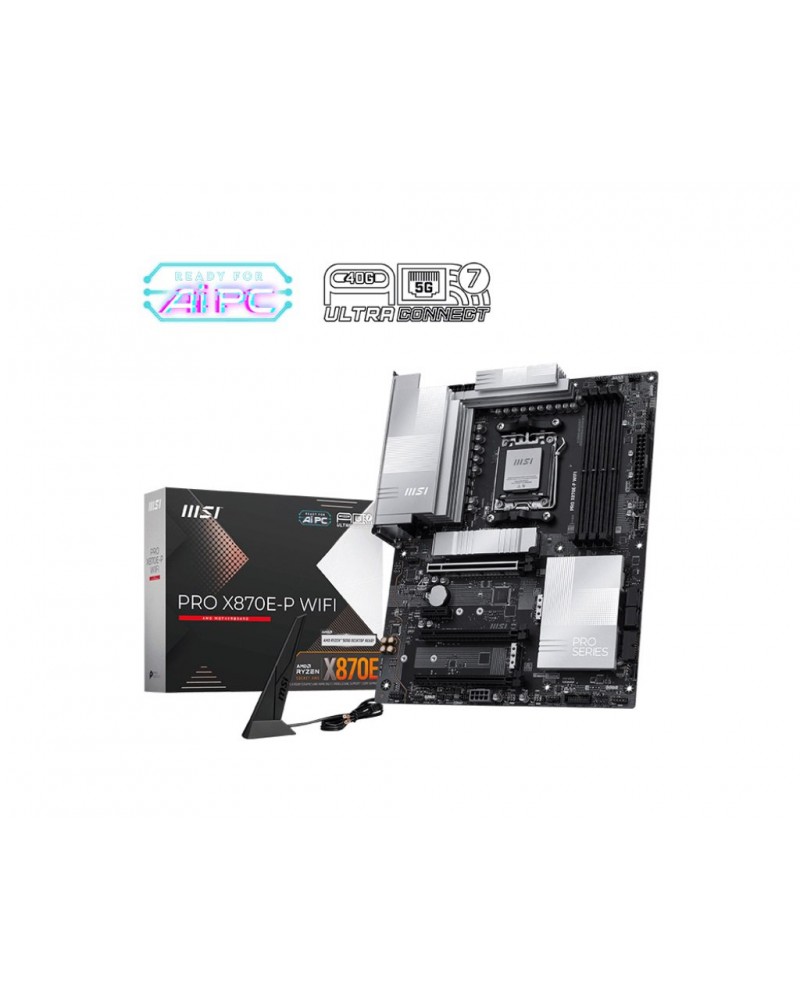

MSI PRO X870E-P WIFI AMD X870E Ryzen 9000/8000 / 7000 AM5 DDR5 PCIe 5.0 x16, M.2 Wi-Fi 7, 5G LAN ATX (X870EPWIFI)
Consulta por Este producto por WhatsApp aquí
Precio Efectivo y tranferencia
$379,990Precio Tarjeta
$408,591Consulta por Este producto por WhatsApp aquí
- Chipset: AMD X870E
- CPU
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
- Socket AM5
- Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
- Ryzen 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8200+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 6000+ MT/s
- Supports AMD POR Speed and JEDEC Speed
- Supports Memory Overclocking and AMD EXPOTM
- Supports Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM, Clock Driver bypass mode only
- Onboard Graphics
- 1x HDMI
- Support HDMITM 2.1, maximum resolution of 4K 60Hz
- 1x Type-C DisplayPort
- USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
- Slot
- 3x PCI-E x16 slot (Qty)
- 1x PCI-E x1 slot (Qty)
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E1 slot:
- Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)
- Audio
- Realtek ALC897
- 7.1-Channel High Definition Audio
- Storage
- 3x M.2 (Qty)
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices
- 4x SATA 6G (Qty)
- M2_1 slot:
- Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
- RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
- USB
- 4x USB 2.0 (Rear)
- 6x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 4x USB 5Gbps Type A (Front)
- 2x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Front)
- 1x USB 20Gbps Type C (Rear)
- 1x USB 40Gbps Type C (Rear)
- LAN: Realtek 8126VB 5G LAN
- Internal IO
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x Power Connector(PCIE_PWR 8pin)
- 1x CPU Fan
- 1x Combo Fan (Pump_Sys Fan)
- 6x System Fan
- 1x ARGB+FAN Header (JAF_1)
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Tuning Controller connector(JDASH)
- 3x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 6x USB 2.0 ports
- 4x USB 5Gbps Type A ports
- 1x USB 10Gbps Type C ports
- Wireless Lan & Bluetooth
- Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth 5.4, MLO, 4KQAM
- LED Feature
- 4x EZ Debug LED
- 1x EZ Memory Detection LED
- Back Panel Ports
- Clear CMOS Button
- USB 5Gbps Type-A
- USB 2.0
- 5G LAN
- Wi-Fi / Bluetooth
- Audio connectors
- Flash BIOS Button
- HDMI
- USB 40Gbps Type-C
- USB 10Gbps Type-A
- USB 20Gbps Type-C
- USB 5Gbps Type-A
- Operating System: Support for Windows 11 64-bit
- PCB Info
- ATX
- 243.84mmx304.8mm
