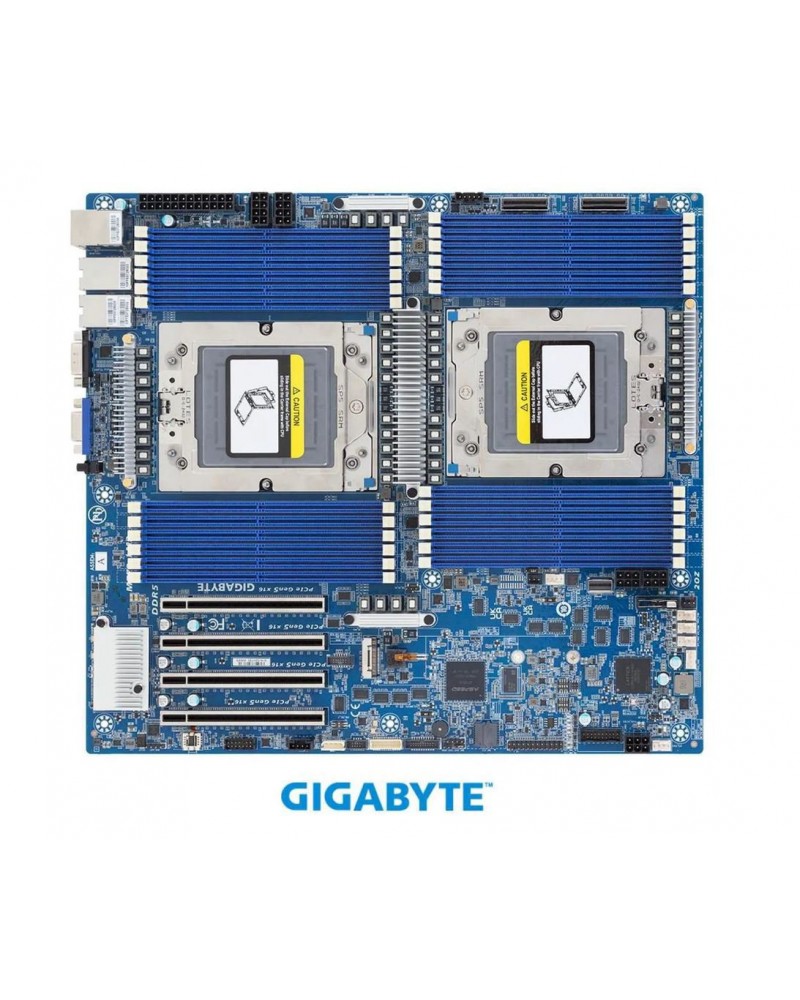

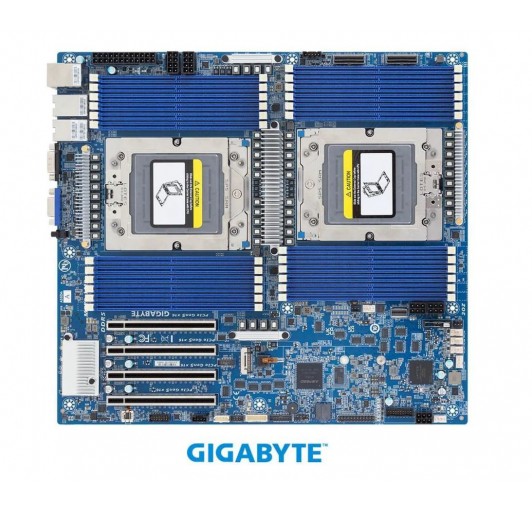

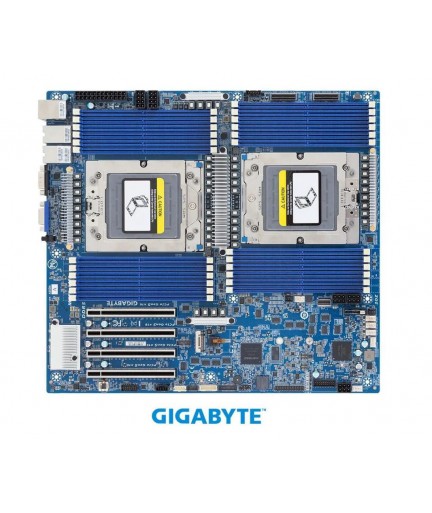

GIGABYTE MZ73-LM2 - AMD EPYC 9005/9004 - E-ATX DP PCIe Gen5 cTDP 500W Socket SP5 DDR5 M.2
GIGABYTE MZ73-LM2 - AMD EPYC 9005/9004 - E-ATX DP PCIe Gen5 cTDP 500W Socket SP5 DDR5 M.2
Referencia: MZ73-LM2
Disponibilidad: Disponible USA entrega 7/14 dias

Precio Efectivo y tranferencia

$2,099,900

Precio Tarjeta

$2,257,956

Consulta por Este producto por WhatsApp aquí

Cantidad

  • Form Factor (WxD, mm): E-ATX 304.8 x 335.2
  • CPU
    • AMD EPYC 9005 Series Processors
    • AMD EPYC 9004 Series Processors
    • Dual processor, cTDP up to 500W
  • Socket
    • 2 x LGA 6096
    • Socket SP5
  • Chipset: System on Chip
  • Memory
    • 24 x DIMM slots
    • DDR5 memory supported
    • 12-Channel memory per processor
    • AMD EPYC 9005: RDIMM: Up to 6400 MT/s
    • AMD EPYC 9004: RDIMM: Up to 4800 MT/s
  • LAN
    • 2 x 10Gb/s LAN (1 x Broadcom BCM57416)
    • Support NCSI function
    • 1 x 10/100/1000 Mbps Management LAN
  • Video
    • Integrated in ASPEED AST2600
    • 1 x VGA port
  • Storage Interface
    • MCIO: 2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA, from CPU_1
    • SlimSAS: 1 x SlimSAS 4i for 4 x SATA, from CPU_0
    • M.2: 1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0
  • PCIe Expansion Slots
    • Slot_4: PCIe x16 (Gen5 x16), from CPU_0
    • Slot_3: PCIe x16 (Gen5 x16), from CPU_0
    • Slot_2: PCIe x16 (Gen5 x16), from CPU_1
    • Slot_1: PCIe x16 (Gen5 x16), from CPU_1
    • 2 x MCIO 8i (PCIe Gen5 x8 or SATA), from CPU_1
  • Internal I/O
    • 1 x 24-pin ATX main power connector
    • 2 x 8-pin ATX 12V power connectors
    • 3 x 6-pin ATX 12V power connectors
    • 2 x CPU fan headers (4pin)
    • 2 x CPU fan headers (3pin)
    • 4 x System fan headers
    • 1 x USB 3.2 Gen1 x2 header
    • 1 x M.2 slot
    • 2 x MCIO 8i connectors
    • 1 x SlimSAS 4i connector
    • 1 x Front panel header
    • 1 x Backplane board header
    • 1 x PMBus connector
    • 1 x IPMB connector
    • 1 x TPM header
  • Rear I/O
    • 2 x USB 3.2 Gen1 ports (Type-A)
    • 1 x VGA port
    • 1 x COM port
    • 2 x RJ45 ports
    • 1 x MLAN port
    • 1 x ID button with LED
  • Security Modules: 1 x TPM header with SPI interface
  • Board Management
    • ASPEED AST2600 Baseboard Management Controller
    • GIGABYTE Management Console web interface
    • Dashboard
    • HTML5 KVM
    • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
    • Sensor Reading History Data
    • FRU Information
    • SEL Log in Linear Storage / Circular Storage Policy
    • Hardware Inventory
    • Fan Profile
    • System Firewall
    • Power Consumption
    • Power Control
    • Advanced power capping
    • LDAP / AD / RADIUS Support
    • Backup & Restore Configuration
    • Remote BIOS/BMC/CPLD Update
    • Event Log Filter
    • User Management
    • Media Redirection Settings
    • PAM Order Settings
    • SSL Settings
    • SMTP Settings
  • PSU Connectors
    • 1 x 24-pin ATX main power connector
    • 2 x 8-pin ATX 12V power connectors
    • 3 x 6-pin ATX 12V power connectors
  • Operating Properties
    • Operating temperature: 10°C to 40°C
    • Operating humidity: 8% to 80% (non-condensing)
    • Non-operating temperature: -40°C to 60°C
    • Non-operating humidity: 20% to 95% (non-condensing)
  • Retail Packaging Content
    • 1 x MZ73-LM2
    • 1 x I/O shield
    • 1 x Quick start guide
    • 1 x SlimSAS 4i to 4 x SATA cable (600mm)
    • Single Box dimensions: 409 x 355 x 78 mm
