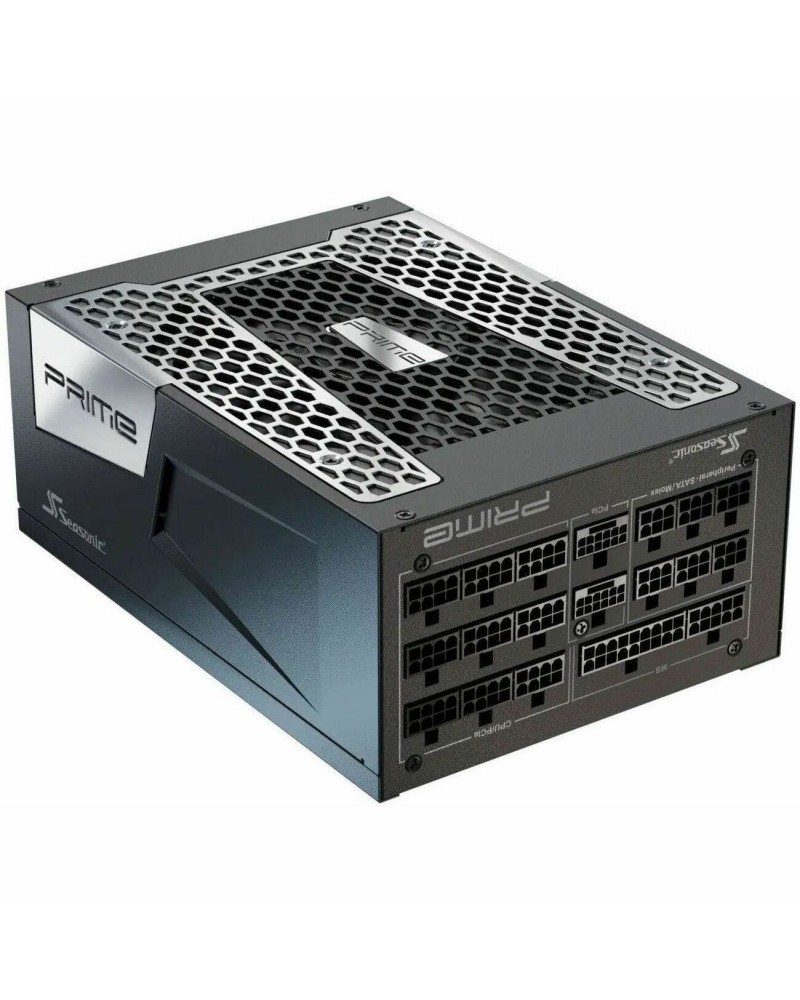

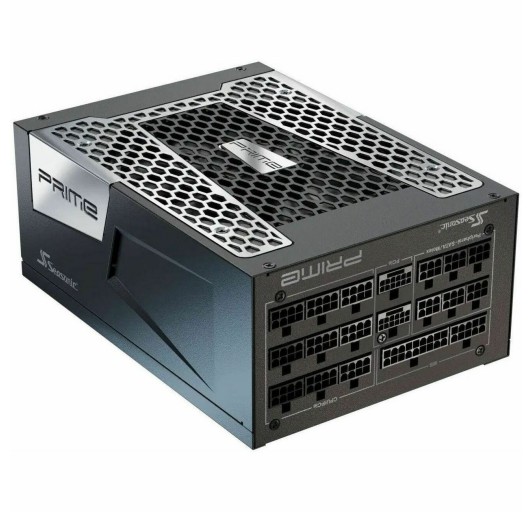

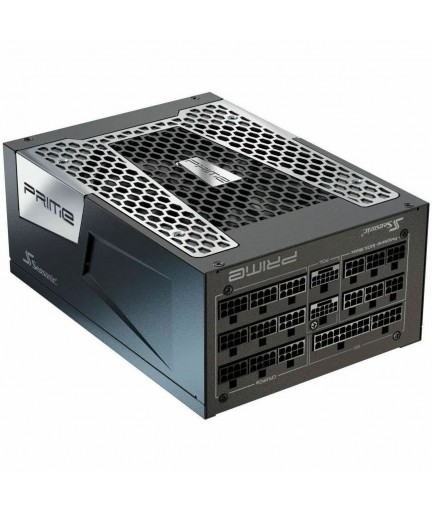

Seasonic PRIME PX-1600, 1600W 80+ Platinum, ATX 3.1 & PCIe 5.1 Ready, Full Modular, Low Noise, Premium Japanese Capacitor, Nvidia RTX 30/40 Super, AMD GPU Compatible, Ref# SSR-1600PD2

Brand SeaSonic USA

Model SSR-1600PD2

Type ATX/EPS

Maximum Power 1600 W

Fans 1 x 135 mm Fluid Dynamic Bearing Fan

+12V Rails Single

Max PSU Length 210 mm

Modular Full Modular

Efficiency > 95%

Energy-Efficient 80 PLUS TITANIUM Certified

PSU Noise Level Cybenetics A

Overload Protection Yes

Input Voltage 100 - 240 V

Input Frequency Range 50 Hz - 60 Hz

Input Current 15A @ 100V, 10A @ 240V

MTBF >100,000 Hours

Features

Features 80PLUS Titanium certification, Cybenetics Titanium efficiency, Cybenetics Lambda A noise level, Digital Hybrid Fan Control, Fluid Dynamic Bearing fan, Fully Modular, Individual Black Cables with Braided Pattern, OPP/OVP/UVP/OCP/OTP/SCP protections, 12 Years Warranty

Dimension & Weight

Dimensions 8.3 x 6 x 3.4"

Weight 6.17lbs

Details

Power Rating 1600W

Input

Frequency Range 50 Hz - 60 Hz

Output

+3.3V Max. Current 25A

+5V Max. Current 25A

+12V1 Max. Current 133.3A

-12V Max. Current 0.5A

+5VSB Max. Current 3A

Fans

Fans Total Quantity 1

Top Fans Size 135mm

Top Fans Bearing Type Fluid Dynamic Bearing

Rear Fans Size 135mm

Rear Fans Bearing Type Fluid Dynamic

Protection

Over Voltage Protection Yes

Over Load Protection Yes

Short Circuit Protection Yes

Under Voltage Protection Yes

Over Current Protection Yes

Over Power Protection Yes

Over Temperature Protection Yes
